What is Precision Machining: Types, Machines, and Processes

Precision machining is a critical process in modern manufacturing, providing the high degree of accuracy and consistency required in various industries such as aerospace, automotive, medical, and electronics.

This article delves into the intricacies of precision machining, covering its definition, techniques, applications, and the future trends shaping this essential manufacturing process.

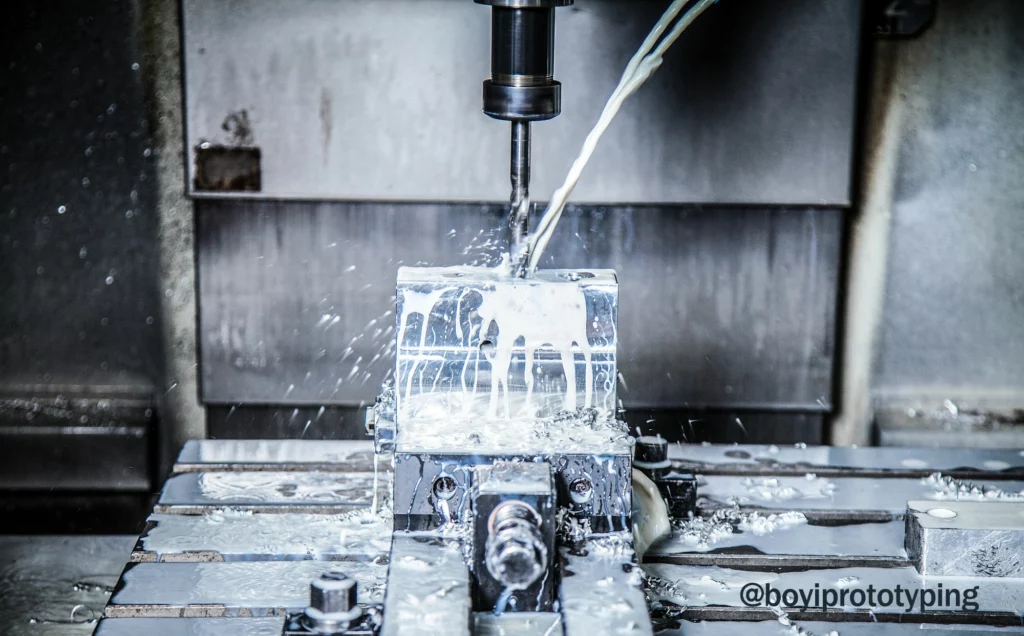

What is Precision Machining?

Precision machining is a process that involves removing material from a workpiece while holding close tolerance finishes. This process can be done on a wide range of materials, including metal, plastic, ceramic, and composites. The goal is to produce parts to very tight specifications, often within thousandths of an inch.

Type	Tolerance Range
Standard CNC Machining	±0.01″
Precision Machining	±0.001″

History of Machining

Machining dates back to 700 B.C., starting with manual lathes. In the late 1700s, steam power revolutionized the field, leading to automation and the mass production of machine tools, which fueled the Industrial Revolution. By the 1940s, punch cards controlled machines, paving the way for today’s computer-based programming and advanced machining technology.

Common Machining Definitions and Roles

• Precision Manufacturing: The process of creating parts and products with high accuracy and consistency, often using advanced machinery and techniques to meet exact specifications.
• CNC Manufacturing: (CNC stands for Computer Numerical Control) A method of manufacturing where computers control machine tools. CNC manufacturing allows for precise, automated production of complex parts.
• Precision Machine: A machine designed to produce highly accurate and finely detailed parts, maintaining extremely tight tolerances.
• Computer-Aided Design (CAD): The use of computer software to design and create detailed digital models of products and parts. CAD is essential for planning and visualizing the manufacturing process, ensuring accuracy and efficiency.

What are Precision Machining Tolerances?

Precision machining tolerances refer to the allowable variations in the dimensions, angles, and other geometric characteristics of a workpiece during the machining process.

1. Unilateral Tolerances:
   • This type of tolerance allows for variation in a specific direction, either above or below the nominal (intended) size.
   • It is often used when the part’s function or fit is sensitive to dimensional changes in a single direction.
   • For instance, if a shaft needs to fit into a hole with a specific clearance, a unilateral tolerance might be applied to the shaft’s diameter to ensure it doesn’t exceed the hole’s diameter.
2. Bilateral Tolerances:
   • Bilateral tolerances permit variations in dimensions in both directions, above and below the nominal size.
   • They are common in situations where the part’s function is not sensitive to the specific direction of dimensional changes.
   • Bilateral tolerances are often used when there’s a need for flexibility in the fit of mating parts.
3. Compound Tolerances:
   • Compound tolerances are calculated by combining the tolerances of different dimensions that contribute to the final geometry of a part.
   • They consider the cumulative effect of individual tolerances on the overall accuracy of the part.
   • Compound tolerances are essential for ensuring the overall dimensional accuracy of complex parts with multiple dimensions and features.
4. Limit Dimensions:
   • Instead of defining a specific dimensional size, limit dimensions set the upper and lower limits within which the actual dimension must fall.
   • They provide a range of acceptable dimensions for a part.
   • Limit dimensions are often used in manufacturing processes where it’s difficult to achieve tight tolerances consistently.
   • They allow for some flexibility in the final size while still ensuring the part meets its functional requirements.

In precision machining, tolerances are carefully selected based on the part’s application, material, and the capabilities of the machining equipment. Strict tolerances may require the use of specialized tooling, fixtures, and inspection methods to ensure dimensional accuracy.

Why Do You Need Precision Machining Parts?

Here are four key reasons:

1. Added Value: Precision machining adds value to a product by improving its performance, durability, and reliability. By creating parts with precise dimensions and finishes, manufacturers can create products that meet or exceed customer expectations.
2. Assembly: Precision machining parts are crucial for ensuring that components fit together correctly during the assembly process. Tight tolerances and accurate dimensions are required to achieve proper alignment and functionality of the final product.
3. Efficiency and Safety: In some cases, precision machining parts are necessary for ensuring the efficient and safe operation of a machine or system. For example, in high-speed rotating machinery, precision-machined bearings and seals can reduce friction and wear, leading to improved performance and reduced maintenance costs.
4. Aesthetics: Precision machining not only ensures functional accuracy but also contributes to the overall aesthetics of a product. Smooth surfaces, sharp edges, and consistent finishes enhance the visual appeal of a product, making it more appealing to consumers.

When is Precision Machining Not Necessary?

Precision machining is not always necessary in every manufacturing context. Here are some situations where precision machining may not be required:

1. Rapid Prototyping: When creating initial prototypes or concept models, precision machining may be too costly or time-consuming. Rapid prototyping methods like 3D printing or manual machining might be more suitable for quick iterations.
2. Low-Tech Applications: In some industries or applications where tight tolerances and high accuracy are not critical, simpler manufacturing methods like casting, molding, or basic machining may suffice.
3. Cost Considerations: Precision machining can be expensive due to the need for advanced equipment and skilled labor. If cost constraints are paramount and functional requirements can be met with less precise parts, alternative manufacturing methods might be chosen.
4. Customization and Artistic Designs: In cases where unique, irregular shapes or artistic designs are desired, traditional machining processes may give way to more artisanal or specialized techniques that prioritize aesthetics over precision.
5. Temporary or Disposable Parts: Parts that are intended for short-term use or disposable applications may not require the durability or exact specifications that precision machining provides.

In summary, the necessity for precision machining depends largely on the specific requirements of the application, including functional needs, cost considerations, and aesthetic preferences.

Precision Machining Process

Precision machining is a sophisticated manufacturing process that involves meticulous planning, advanced technology, and exacting standards to produce high-quality components.

1. Design the Graphical Model: The process begins with designing a detailed graphical model using Computer-Aided Design (CAD) software. This model includes precise dimensions, geometries, and specifications of the part to be machined.
2. Convert CAD to CAM: Once the design is finalized, the CAD model is translated into instructions for the machining process using Computer-Aided Manufacturing (CAM) software. CAM software generates tool paths, selects cutting tools, and optimizes machining parameters for efficiency and accuracy.
3. Machine Setup: The next step involves setting up the machining center or CNC machine. This includes installing the necessary cutting tools, securing the workpiece, and configuring the machine settings according to the CAM-generated instructions.
4. Execute the Machining: With the machine set up and ready, the machining process begins. The CNC machine or machining center follows the programmed instructions to precisely cut, drill, mill, or grind the workpiece to match the specifications defined in the CAD model.
5. Quality Control and Monitoring: Throughout the machining process, quality control measures are implemented to ensure that each part meets the required tolerances and specifications. Monitoring tools may be used to check dimensions, surface finishes, and other critical parameters.
6. Completion and Finishing: Once machining is complete and quality checks are passed, the finished parts are removed from the machine. Depending on the application, additional finishing processes such as deburring, polishing, or coating may be applied to achieve the final desired surface quality and functionality.
7. Assembly and Integration: In some cases, precision machined parts may undergo further assembly or integration into larger assemblies or products. This step ensures that all components fit together seamlessly and function as intended in the final application.

The precision machining process combines advanced technology with meticulous attention to detail, resulting in high-quality, precisely engineered parts used across various industries.

Types of Precision Machining

Precision machining encompasses various specialized processes, each tailored to specific manufacturing needs and capabilities. Here are key types:

CNC Milling Machines

CNC milling machines use rotating cutting tools to remove material from a workpiece, creating complex shapes and profiles with high precision. This method is ideal for producing components with intricate details and multiple axes of movement.

Applications:

• Aerospace components such as turbine blades and engine mounts
• Automotive parts like transmission cases and suspension components
• Medical implants including bone plates and prosthetic joints
• Electronic enclosures and heat sinks
• Mold and die components for plastic injection molding

Limitations:

• Complex geometries may require multiple setups
• Limited to parts that fit within machine size constraints
• Higher initial setup and programming costs

Cost:

CNC milling machines involve significant initial investments in machinery and tooling. The costs are influenced by the complexity of parts and materials used. However, they offer high efficiency and precision, which can offset initial investments over time. Operational costs include maintenance, tooling, and energy consumption, while setup costs encompass programming and fixturing.

CNC Turning

CNC turning involves rotating a workpiece while a single-point cutting tool shapes it into a desired form. This process is commonly used to create cylindrical parts such as shafts, rods, and tubes, offering efficient production of symmetrical components.

Applications:

• Precision shafts and rods for automotive and machinery
• Hydraulic and pneumatic components like pistons and valves
• Aerospace fittings and connectors
• Medical instruments and surgical tools
• Bearings and bushings for industrial applications

Limitations:

• Limited to rotational symmetrical parts
• Less effective for complex shapes like prismatic parts
• Tooling limitations for very small or large diameters

Cost:

CNC turning typically incurs lower setup costs compared to milling due to simpler tooling and programming requirements. Operational costs include tool wear, material consumption, and maintenance of machine components. While initial investment in equipment is necessary, efficient production processes and reduced labor costs contribute to overall cost-effectiveness.

CNC Laser Machines

CNC laser machines utilize a focused beam of light to cut, engrave, or etch materials such as metal, plastic, and wood with exceptional precision. This non-contact method is valued for its ability to achieve intricate designs and tight tolerances.

Applications:

• Precision cutting of sheet metal for automotive panels and aircraft parts
• Engraving intricate designs on jewelry, electronics, and promotional items
• Prototyping and production of custom signage and architectural models
• Fabrication of medical instruments and surgical devices
• Manufacturing of stencils and gaskets

Limitations:

• Limited to materials that are suitable for laser cutting (metals, plastics, etc.)
• Thickness limitations for certain materials
• High initial equipment and maintenance costs

Cost:

CNC laser machines involve high initial costs due to the purchase of specialized equipment capable of precise cutting and engraving. Operational costs include energy consumption, maintenance of laser optics, and periodic replacement of consumables like lenses and gases. Despite these upfront costs, they offer rapid prototyping capabilities and efficient batch production, reducing per-unit costs for high-volume manufacturing.

Mill Turning CNC Machining

Mill turning CNC machining combines milling and turning operations into a single setup, allowing for the production of complex parts with both cylindrical and prismatic features in one machine. This process is particularly effective for creating parts that require multiple operations and precise tolerances.

Applications:

• Aerospace components such as turbine disks and engine shafts
• Automotive parts including gearbox housings and axle shafts
• Medical implants such as orthopedic screws and dental implants
• Industrial components like hydraulic fittings and valves
• Precision tooling and molds for manufacturing processes

Limitations:

• Complex programming required for simultaneous milling and turning operations
• Size limitations based on machine capabilities and part dimensions
• Higher initial investment compared to standalone milling or turning machines

Cost:

Mill turning CNC machines involve higher initial costs due to their versatility and capability to perform multiple operations. Operational costs include tooling, maintenance, and energy consumption. Despite higher upfront investments, the efficiency gained from reduced setup times and increased throughput can lead to cost savings over time.

Electrical Discharge Machining (EDM)

EDM is a non-traditional machining process that uses electrical discharges to remove material from a workpiece. It is suitable for machining electrically conductive materials with high precision, achieving intricate shapes and fine finishes.

Applications:

• Die and mold making for plastic injection molding and die casting
• Aerospace components such as turbine blades and engine components
• Medical tools and instruments like surgical implants and dental instruments
• Electronics manufacturing for intricate components like connectors and electrodes
• Automotive parts including gears, camshaft, and injection nozzles

Limitations:

• Limited to electrically conductive materials like metals and alloys
• Slower material removal rate compared to conventional machining processes
• Surface finish may require additional polishing or grinding

Cost:

EDM machines require significant initial investment due to their specialized technology and precision capabilities. Operational costs include electrode materials, dielectric fluid, and maintenance of machine components. Despite higher operating costs, EDM is preferred for its ability to machine complex shapes and hardened materials that are difficult to process using traditional methods.

CNC Machine

A CNC (Computer Numerical Control) machine uses computerized controls and programming to automate machining operations. These machines can perform a wide range of tasks with high accuracy, making them essential in modern manufacturing for their efficiency and versatility

Applications:

• CNC milling for producing complex shapes and prototypes
• CNC turning for cylindrical parts and shafts
• CNC laser cutting for precise cutting and engraving
• CNC routing for woodworking and plastic fabrication
• CNC grinding for achieving tight tolerances and surface finishes

Limitations:

• Initial setup and programming can be complex and time-consuming
• Skill and training required to operate CNC machines effectively
• Maintenance of machine components and tools is essential for prolonged operation

Cost:

CNC machines vary in cost depending on their type and capabilities. Initial investments include machine purchase, tooling, and software. Operational costs encompass maintenance, tool wear, energy consumption, and material expenses. Despite higher upfront costs, CNC machines offer efficiency gains, reduced labor costs, and the ability to produce high-quality, consistent parts across various industries.

Swiss Machining

Swiss machining, also known as Swiss turning, is a highly precise machining method used for small, complex parts. It involves the simultaneous operation of multiple cutting tools on a rotating workpiece, supported by a sliding headstock and guide bushing. This process is valued for its ability to achieve tight tolerances and excellent surface finishes

Applications:

• Watchmaking components like gears, pinions, and screws
• Medical devices such as surgical implants and dental instruments
• Aerospace parts including fuel injector nozzles and hydraulic fittings
• Electronics components like connectors and pins
• Automotive parts including fuel system components and precision shafts

Limitations:

• Size limitations due to machine design and part dimensions
• Higher initial setup and tooling costs compared to conventional turning
• Complex programming required for multi-axis simultaneous operations

Cost:

Swiss machining involves higher initial costs due to specialized equipment and tooling requirements. Operational costs include maintenance, tool wear, and energy consumption. Despite higher upfront investments, the efficiency gained from reduced cycle times and minimal material waste can lead to cost savings over time.

CNC Boring

CNC boring is a machining process used to enlarge and refine existing holes in workpieces with extreme precision. It utilizes rotating cutting tools to achieve accurate dimensions and smooth finishes.

Applications:

• Engine blocks and cylinder bores in automotive manufacturing
• Large-scale industrial components like hydraulic cylinders and gearboxes
• Aerospace structures such as landing gear components and turbine housings
• Precision machining of molds and die casting tools
• Marine equipment including propeller shafts and ship components

Limitations:

• Limited to applications requiring precise cylindrical bores or enlargements
• Initial setup and fixturing can be time-consuming for large parts
• Not suitable for creating complex external shapes or profiles

Cost:

CNC boring involves moderate to high initial setup costs due to specialized equipment and tooling. Operational costs include tool wear, maintenance, and energy consumption. Despite these costs, CNC boring offers efficiency and precision in machining large, critical components, reducing secondary operations and ensuring dimensional accuracy.

CNC Grinders

CNC grinders are machines used for precise grinding operations to achieve high dimensional accuracy and surface finishes. They utilize abrasive wheels to remove material from a workpiece, often in small increments, to achieve tight tolerances.

Applications:

• Precision grinding of hardened metals for tool and die making
• Production of high-precision components like bearings and gears
• Automotive parts including crankshafts and camshafts
• Aerospace components such as turbine blades and compressor discs
• Medical instruments and surgical tools requiring fine surface finishes

Limitations:

• Initial setup and programming can be complex for intricate profiles
• Specialized expertise required for selecting grinding parameters and wheel dressing
• Higher operational costs due to abrasive consumables and maintenance

Cost:

CNC grinders involve significant initial investment in machine purchase and setup. Operational costs include abrasive materials, coolant, maintenance of grinding wheels, and energy consumption. Despite higher costs, CNC grinders offer unmatched precision and repeatability in achieving tight tolerances and surface finishes critical for high-performance applications.

CNC Drilling

CNC drilling is a machining process used to create holes in workpieces with high precision and efficiency. It utilizes rotating cutting tools to remove material from the workpiece, producing accurate hole diameters and depths.

Applications:

• Aerospace components including fuselage panels and engine mounts
• Automotive manufacturing for chassis components and engine parts
• Electronics manufacturing for printed circuit boards (PCBs) and connector plates
• Construction materials such as steel beams and reinforced concrete
• Medical devices requiring precise hole patterns and alignments

Limitations:

• Limited to creating cylindrical holes in flat or contoured surfaces
• Setup and fixturing requirements can vary based on part geometry and material
• Not suitable for creating internal threads or complex geometries without additional operations

Cost:

CNC drilling involves moderate initial setup costs depending on machine type and complexity. Operational costs include tooling, coolant, maintenance, and energy consumption. Despite these costs, CNC drilling offers efficiency and accuracy in creating holes of varying sizes and shapes, reducing manual labor and ensuring consistent part quality.

Multi-Axis CNC Machining

Multi-axis CNC machining involves the use of CNC machines that operate with multiple axes of motion, typically three to five, allowing for the production of complex and intricate parts in a single setup. These machines can perform various operations such as milling, drilling, and cutting on different planes simultaneously.

Applications:

• Aerospace components like turbine blades and structural parts
• Automotive parts including complex engine components and transmission cases
• Medical implants such as hip joints and dental prosthetics
• Precision molds and dies for plastic injection molding
• Complex prototypes and custom manufacturing in various industries

Limitations:

• High complexity in programming and setup
• Significant initial investment in advanced machinery
• Requires skilled operators and engineers for effective operation

Cost:

Multi-axis CNC machining involves high initial costs due to the purchase of sophisticated machines and software. Operational costs include tooling, maintenance, and energy consumption. Despite these expenses, the ability to produce complex parts with high precision in a single setup can lead to reduced production times and cost savings in the long term.

Waterjet Cutting Machines

Waterjet cutting machines utilize a high-pressure stream of water, often mixed with an abrasive material, to cut through a wide range of materials with high precision. This cold-cutting process eliminates heat-affected zones and maintains material integrity.

Applications:

• Cutting intricate shapes in metals, including steel and aluminum, for automotive and aerospace parts
• Fabrication of stone and tile for architectural and construction purposes
• Cutting composites and laminates for industrial applications
• Production of custom gaskets and seals
• Artistic applications such as creating detailed designs in glass and metal

Limitations:

• Slower cutting speeds compared to laser or plasma cutting for thicker materials
• High water and abrasive consumption
• Potential for material deformation with very thin or brittle materials

Cost:

Waterjet cutting machines involve substantial initial investment due to the specialized equipment required. Operational costs include water, abrasive materials, maintenance, and energy consumption. However, the versatility in cutting various materials and the precision achieved without thermal distortion can result in cost savings for specific applications.

Micro-Machining

Micro-machining is a precision manufacturing process used to create extremely small and intricate parts, often at the micro-scale. This process involves using specialized tools and machines capable of achieving very fine detail and tight tolerances.

Applications:

• Microelectronics components like microchips and circuit elements
• Medical devices including micro-needles and miniature surgical instruments
• Aerospace parts such as micro-turbines and sensors
• Watchmaking components with high precision
• Micro-mechanical systems (MEMS) used in various industries

Limitations:

• Requires specialized equipment and tooling capable of micro-scale precision
• Higher complexity in setup and process control
• Limited material options suitable for micro-machining

Cost:

Micro-machining involves high initial costs due to the need for specialized equipment and ultra-precise tooling. Operational costs include tool wear, maintenance, and potentially high rates of material waste. Despite these costs, micro-machining is essential for producing parts with extreme precision and intricate details that cannot be achieved through conventional machining processes.

What are the Advantages of CNC Precision Machining?

CNC precision machining revolutionizes manufacturing by delivering parts with exceptional accuracy and consistency. This technology reduces production costs, enhances safety, and accelerates prototyping, making it a vital asset across various industries. Here are its specific advantages:

Tight Tolerances

CNC precision machining allows for the production of parts with extremely tight tolerances, ensuring that components fit together perfectly and function as intended. This high level of precision is crucial for industries such as aerospace, medical devices, and automotive, where exact specifications are required.

High Accuracy

CNC machines are capable of achieving high levels of accuracy, consistently producing parts that meet exact design specifications. This accuracy reduces the need for manual adjustments and rework, resulting in higher quality products and greater customer satisfaction.

Production Costs

While the initial investment in CNC machinery and setup can be high, CNC precision machining often leads to lower overall production costs. The efficiency of automated processes reduces labor costs, and the precision of CNC machining minimizes material waste and the need for rework.

High Repeatability

CNC machines can repeatedly produce identical parts with minimal variation, ensuring consistency in large production runs. This repeatability is essential for maintaining quality standards and meeting production quotas in various manufacturing industries.

Speed and Efficiency

CNC machining processes are faster and more efficient compared to traditional manual machining methods. Automated operations allow for continuous production, reducing lead times and increasing overall productivity. This speed and efficiency are beneficial for meeting tight deadlines and responding quickly to market demands.

Safety

CNC precision machining enhances workplace safety by minimizing human intervention during the machining process. Automated machines reduce the risk of accidents and injuries, as operators are not required to perform potentially hazardous tasks. This safer environment also leads to fewer disruptions and more consistent production.

Enables Rapid and Cost-Effective Prototyping

CNC machining is ideal for rapid prototyping, allowing designers and engineers to quickly create and test prototypes. This capability enables faster product development cycles and cost-effective iterations, helping businesses bring new products to market more quickly and efficiently.

Suitable Materials for Precise Machining

Metals:

1. Aluminum
2. Stainless Steel
3. Titanium
4. Brass
5. Copper
6. Nickel Alloys
7. Carbon Steel
8. Tool Steel
9. Magnesium
10. Inconel
11. Hastelloy
12. Tungsten

Plastics and Other Non-metals:

1. ABS (Acrylonitrile Butadiene Styrene)
2. PEEK (Polyether Ether Ketone)
3. PTFE (Polytetrafluoroethylene)
4. Polycarbonate
5. Nylon
6. Delrin (Acetal)
7. Acrylic (PMMA)
8. PVC (Polyvinyl Chloride)
9. Polypropylene (PP)
10. UHMW (Ultra-High Molecular Weight Polyethylene)
11. PET (Polyethylene Terephthalate)
12. HDPE (High-Density Polyethylene)

Outsource Your Precision Machined Parts

If you’re considering outsourcing your precision machined parts, BOYI offers precision CNC machining services that could meet your needs. We specialize in high-quality machining processes, ensuring precision and reliability. It’s a good idea to contact we directly to discuss your specific requirements and get a quotation for your project.

FAQ

---

Catalog: CNC Machining Guide
